Pet tape/Mylar tape
Pet tape/Mylar tape

Pet tape/Mylar tape

Model NO.
Pet tape/Mylar tape
Quantity:

PET tape/ Mylar tape

Product Description:

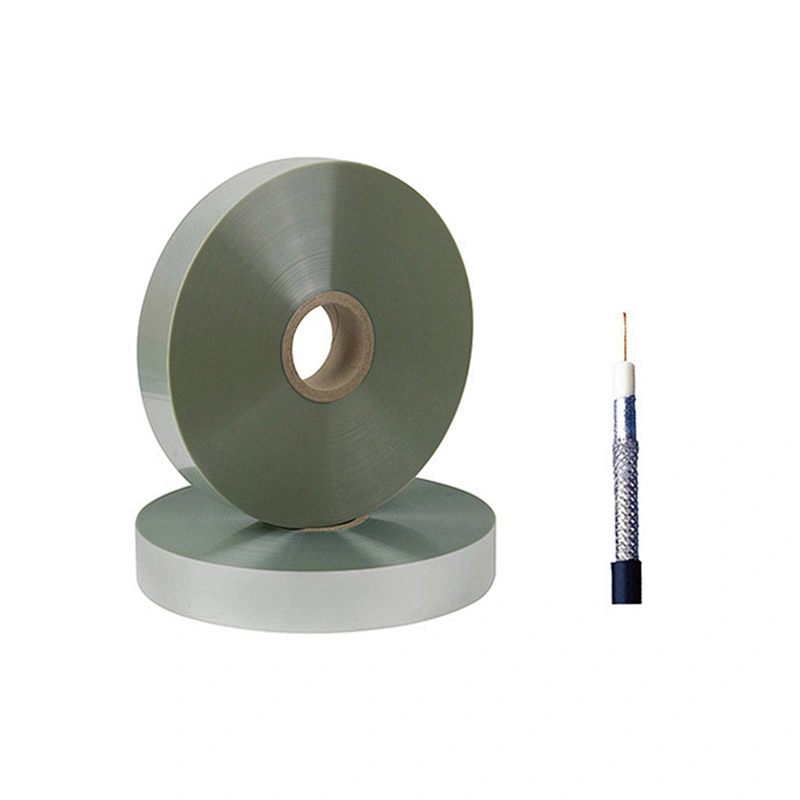

Mylar tape/Polyester tape use high tensile strength and electrical characteristics with bi-axially polyester material, providing cable coating and insulation of internal structures.

Application: Suitable for composite wire materials with multiple structures, like signal transmission lines, coaxial cable, control cable, and other insulation usage with interior wire materials.

Main specification:

Specification

Elongation (%)

Tensile strength (kgf/m²)

Basis weight (g/m²)

12μm

35↑

0.18↑

18.25

15μm

35↑

0.22↑

20.25

25μm

35↑

0.37↑

33.75

38μm

35↑

0.58↑

51.30

50μm

35↑

0.75↑

79.65

75μm

35↑

1.12↑

86.40

In addition to the above specifications, other special requirements can design according to customers

Color:

Transparent

Electrical characteristics:

Temperature resistance of 180 ° c, with high mechanical strength, excellent insulation shielding property, high temperature resistance, low temperature resistance, is an ideal wrapping material, mainly used as insulation and isolation, as well as increased impedance.

Slitting and packaging:

Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
