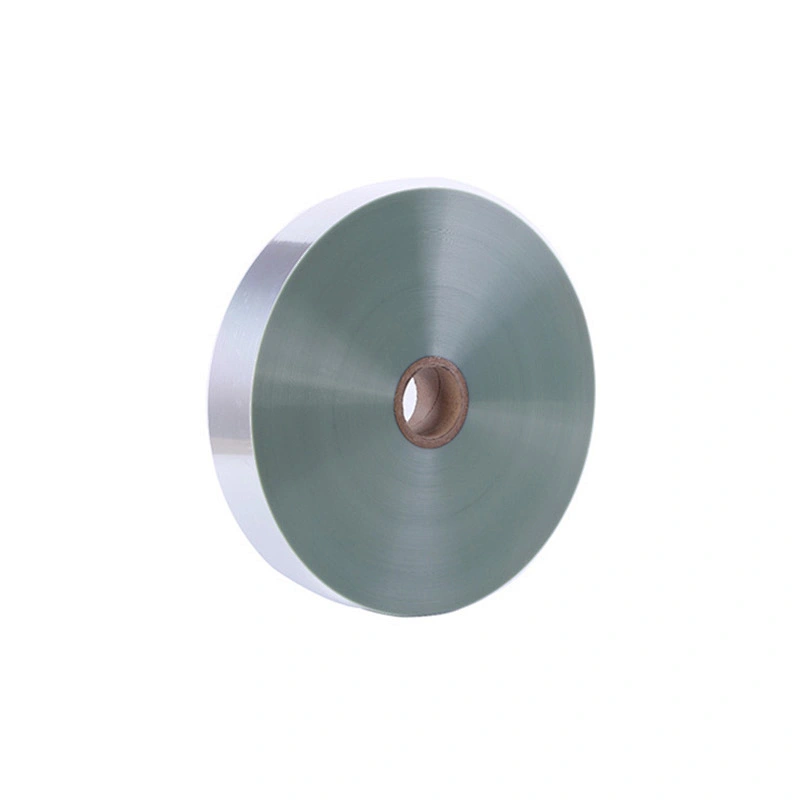

Heat sealed polyester tape

Product Description: Heat sealed polyester tape using hot-melt adhesive for MQ-40 high polymer and PET polyester coating, non-toxic and harmless, accord with the latest version of the EU RoHS environmental regulations. It has good effect of hot melt adhesive when the low temperature and can keep the stability for a long time.

Application: Mainly used in high-frequency signal lines, RF cable, coaxial cable, computer lines, and communication cables and so on. Use thermal energy with out coating wire, good reinforce, excellent compactness and simple process. Apply to insulation function of multi-conductive control wire inner, such as signal wire, coaxial cable, TV wire, and USB3.1 data lines, series ATA wire or LAN cables.

Main specification:

Specification

Composition

Elongation (%)

Tensile strength (kgf/m²)

Basis weight (g/m²)

PET

Hot melt adhesive

17μm

12μm

5μm

35↑

0.18↑

18.25

20μm

15μm

5μm

35↑

0.22↑

20.25

30μm

25μm

5μm

35↑

0.37↑

33.75

43μm

38μm

5μm

35↑

0.58↑

51.30

55μm

50μm

5μm

35↑

0.75↑

79.65

80μm

75μm

5μm

35↑

1.12↑

86.40

In addition to the above specifications, other special requirements can design according to customers

Hot melt materials: MQ-40, Proprietary Formulated Co-polymer

Coating thickness: Precise coating 3μ-25μ (3g-25g/m2)

Temperature thermal reaction: 110°C-135°C

Heat-Sealing strength: normal=250~400g/20mm, strengthened>1500g/20mm

Color: Transparent

Electrical characteristics: Temperature resistance of 180℃, with high mechanical strength, excellent insulation and shielding performance, high temperature resistance, low temperature resistance. It is an ideal wrapping material, mainly used as insulation and isolation, as well as increased characteristic impedance.

Slitting and packaging: Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
