Heat sealed aluminum polyester tape
Heat sealed aluminum polyester tape

Heat sealed aluminum polyester tape

Model NO.
Heat sealed aluminum polyester tape
Quantity:

Heat sealed aluminum polyester tape

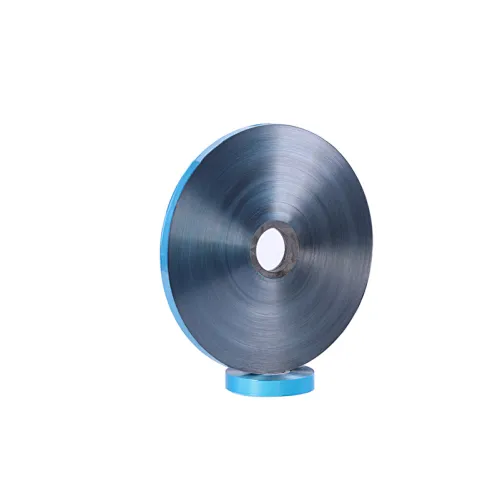

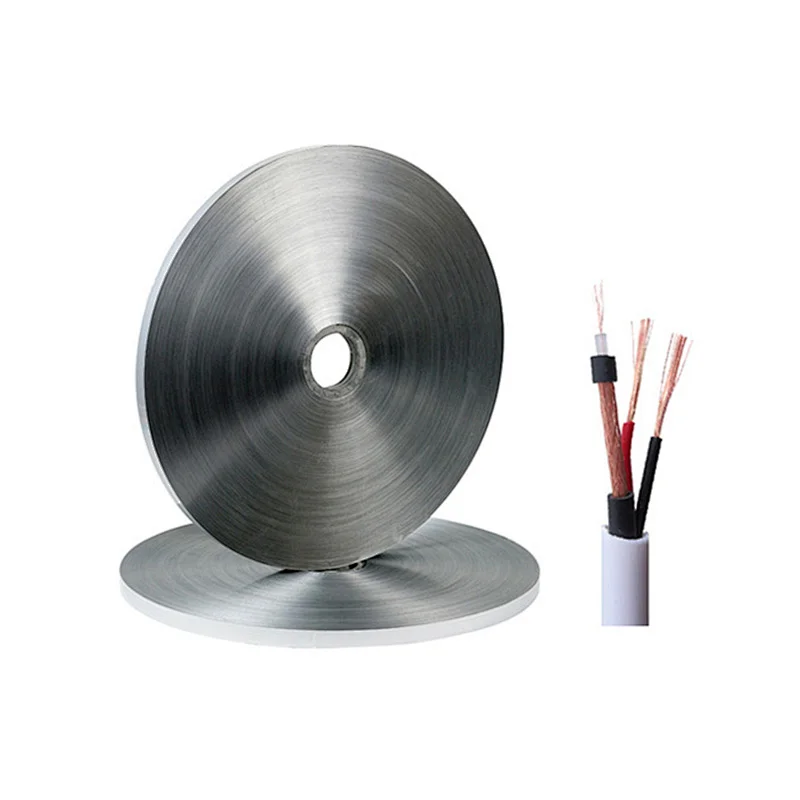

Product Description: Heat sealed aluminum polyester tape also called hot melt aluminum polyester tape, divide in PE heat sealed aluminum polyester tape and PVC heat sealed aluminum polyester tape, made of hot melt adhesive macromolecular polymer MQ-40, non-toxic and harmless, accord with the latest version of the EU RoHS environmental regulations. Another is self adhesive aluminum polyester tape, made of real EAA self adhesive film, it has good effect of hot melt adhesive when the low temperature, and can keep the stability for a long time.

Application: Mainly used in computer lines, communication cables, high-frequency signal lines, RF cable, coaxial cable, and so on. Make use of thermal energy with out coating wire, good reinforce, excellent compactness, simple process. Apply to interference and shielding of multi-conductive control wire, such as signal wire, coaxial cable TV wire, series ATA wire or LAN cables.

Main specification:

pecification

Composition

Elongation

(%)

Tensile strength

(kgf/m²)

Basis weight

(g/m²)

Resistance

(Ωμ.mm)

AL

PET

Hot melt adhesive

30μm

7μm

15μm

5μm

35↑

0.22↑

66.15

2500↓

35μm

7μm

19μm

6μm

35↑

0.37↑

71.55

2500↓

40μm

7μm

25μm

5μm

35↑

0.40↑

79.65

2500↓

50μm

7μm

30μm

10μm

35↑

0.45↑

86.40

2500↓

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

Hot melt materials: MQ-40, Proprietary Formulated Co-polymer ;EAA self adhesive film

Coating thickness: Precise coating 3μ-25μ (3g-25g/m2)

Temperature thermal reaction: 110°C-135°C

Heat-Sealing strength: normal=250~400g/20mm, strengthened>1500g/20mm

Color: Common color is blue and silver, can also be made red, green, gold, etc, according to customer’s needs.

Electrical characteristics: Mainly as an anti-electromagnetic interference is usually the case in 1-100MHZ, shielding around 80dB attenuation can be achieved with Mylar foil.

Slitting and packaging: Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
