Copperpolyestertape
Copperpolyestertape

Copperpolyestertape

Model NO.
Copperpolyestertape
Quantity:

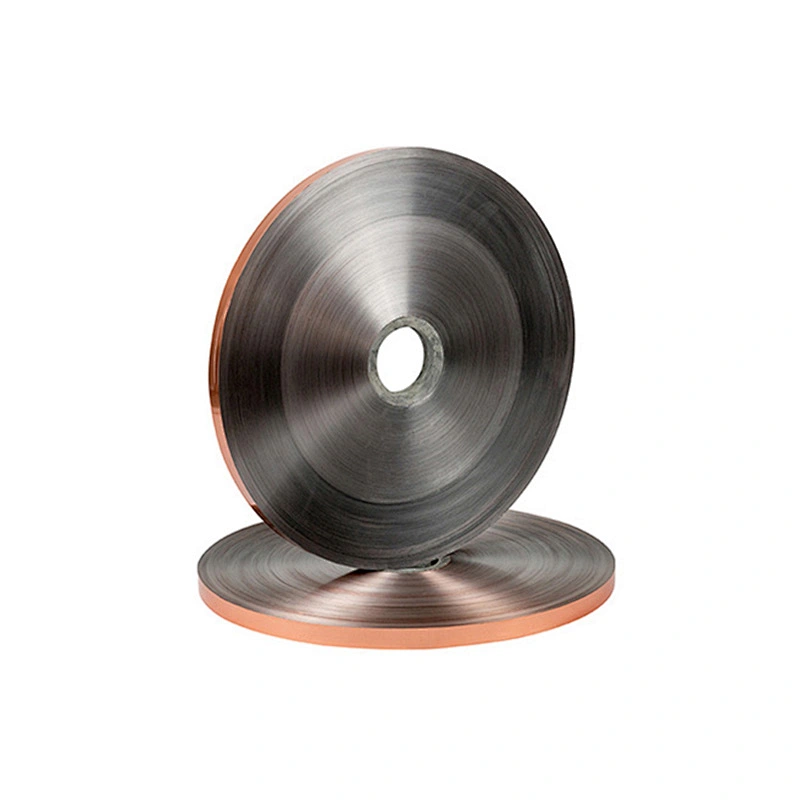

Copper polyester tape

Product Description:

Copper polyester tape also called copper plastic composite tape, consist of copper foil、PET film and adhesive, with oxygen properties in low surface, can be attached with a variety of different base materials, such as metal and insulation materials etc. Widely used in the field, such as communication, computer, radio and other electronic components. And shielding materials for cable, FPC wire board and soft wire board.  Cause rolled copper foil also called electrolytic copper foil with high strength, high flexibility, good ductility, good conductivity, heat dissipation and gloss characteristics it becomes a necessary raw materials of some products.

Application: Mainly used in shielded cables with high performance requirements, computer cable, signal cable, communication cable, and coaxial cable. Polyester film plays a role in strengthening the tensile strength of the copper foil.

Main specifications:

Specification

Composition

Elongation

(%)

Tensile strength

(Mpa)

Basis weight

(g/m²)

Peel strength

(N/cm)

Cu

PET

30μm

15μm

12μm

8↑

100↑

155

3↑

33μm

18μm

12μm

8↑

100↑

182

3↑

46μm

18μm

25μm

8↑

100↑

200

3↑

35μm

20μm

12μm

8↑

100↑

199

3↑

48μm

20μm

25μm

8↑

100↑

218

3↑

53μm

25μm

25μm

8↑

100↑

262

3↑

103μm

25μm

75μm

8↑

100↑

332

3↑

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

Color: Copper

Electrical characteristics:

Primarily as anti-electromagnetic interference, usually use in 1-100MHZ, shielding attenuation of 100dB.

Slitting and packaging:

Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
