Cable CPP tape
Cable CPP tape

Cable CPP tape

Model NO.
Cable CPP tape
Quantity:

Cable CPP tape

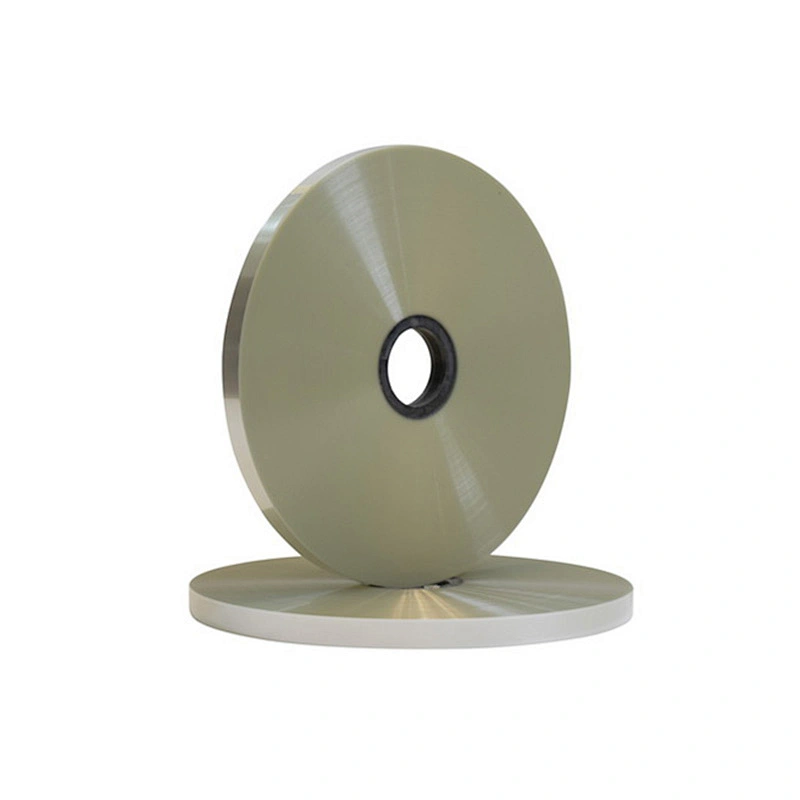

Product Description: CPP with a good heat resistance, wrapping and banding performance is stable and reliable, has fire-resistant property, rough treatment by using polymer crystallization characteristics, get rid of polyester (PET), BOPP tape may wish-slip faults, low cost, and has become alternative products in other wrapping tape.

Application: Mainly used for wrapping in power cable, control cable, cross-linked cable, mining cable, communication cable. Due to thickness is much thinner than non-woven tape and PVC tape, length of single coiling line and coiling tightly, can reduce the number of stops, reduce the labor intensity of workers, reducing the production costs dramatically of the cable.

Main specification:

Specification

(mm)

Basis weight

(g/cm3)

Tensile strength(MD)

(Mpa)

Elongation atbreak(MD)

(%)

Volume resistance

(Ω·cm)

Dielectric strength

(KV/mm)

Temperature range

(℃)

0.08±0.02

0.92±2

≥100

≥30

≥1*1014

≥140

-30~200

0.10±0.02

0.92±2

≥100

≥30%

≥1*1014

≥140

-30~200

0.12±0.02

0.92±2

≥100

≥30%

≥1*1014

≥140

-30~200

In addition to the above specifications, other special requirements can design according to customers

Color: White, green, blue, red

Electrical characteristics: Chemical resistant, high-frequency insulation property is very good, temperature range is wide, and heat shrinkage is small at high temperatures.

Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
