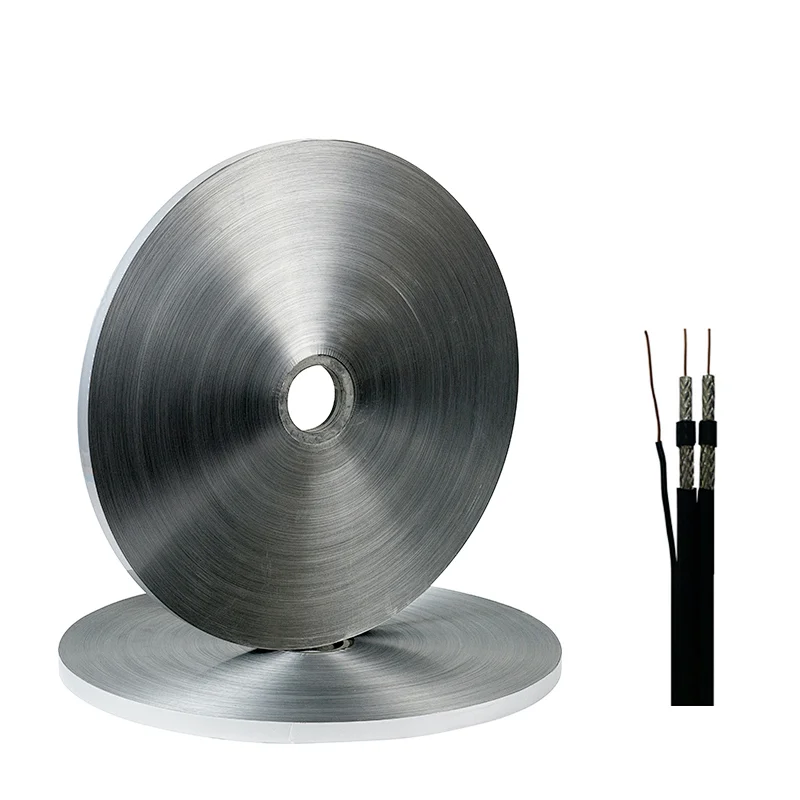

Aluminum polyester tape (double side)
Aluminum polyester tape (double side)

Aluminum polyester tape (double side)

Model NO.
Aluminum polyester tape (double side)
Quantity:

Aluminum polyester tape (double side)

Product Description:

The raw material of aluminum polyester tape is soft aluminum foil and a polyester film, compound with intaglio coating, slitting and rolling when aluminum foil polyester was done; the structure is a layer of aluminum foil in the two sides and a layer of polyester film in the middle. (AL/PET/AL)

Application: Apply to magnetic field with non-electromagnetic or precipitation static, such as communication cables, data cable, coaxial cable, internet cable and shielding of signal cable, can match with coating, it can be used in assemble shielding and grounding when aluminum foil polyester was cut.

Main specifications:

Specification

Composition

Elongation (%)

Tensile strength (Mpa)

Basis weight (g/m²)

Peel strength (N/cm)

AL

PET

AL

32μm

7μm

12μm

7μm

35↑

6.3↑

61±10%

6.3↑

35μm

7μm

15μm

7μm

35↑

6.3↑

65±10%

6.3↑

36μm

9μm

12μm

9μm

35↑

6.3↑

74±10%

6.3↑

49μm

9μm

25μm

9μm

35↑

60↑

92±10%

6.3↑

55μm

12μm

15μm

12μm

35↑

60↑

94±10%

6.3↑

53μm

12μm

23μm

12μm

35↑

60↑

105±10%

6.3↑

61μm

15μm

25μm

15μm

20↑

60↑

122±10%

6.3↑

In addition to the above specifications, other   special requirements can design according to customers

Color:

Common color is blue and silver, can also be made red, green, gold etc, according to customer’s needs, and can also printing and printed twill according to customer needs.

Application:

Mainly used in computer line, communication cable, high-frequency signal lines, RF cable, coaxial cable, and so on.

Electrical characteristics:

mainly as an anti-electromagnetic interference is usually the case in 1-100MHZ, shielding around 70dB attenuation can be achieved with Mylar foil.

Slitting and packaging:

Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
